ACCESSORIES & OPTIONS
1/2-in Air Line to Platform
AC Generator, 2500W or
4000W
Accessory Packages
SkyGlazier® Package
SkyPower® Package
SkyWelder® Package
Arctic Package1
Bolt On Fall Arrest System
Cold Weather Package2
Light Package
Platform Mesh to Mid or
Top Rail
Aluminum or Plastic
Platforms
Drop Bar, 30 x 36-in,
30 x 60-in, 36 x 72-in,
36 x 96-in
Fall Arrest, Rear Entry,
36 x 72-in, 36 x 96-in
Inward Self-Closing
Swing Gate, 30 x 60-in,
36 x 72-in, 36 x 96-in
Tri-Entry, Drop Bar or
Swing Gate, 36 x 72-in,
36 x 96-in
SkySense® Enhanced
Detection System
Soft Touch System
Storage Tray - Center or
Corner
STANDARD SPECIFICATIONS

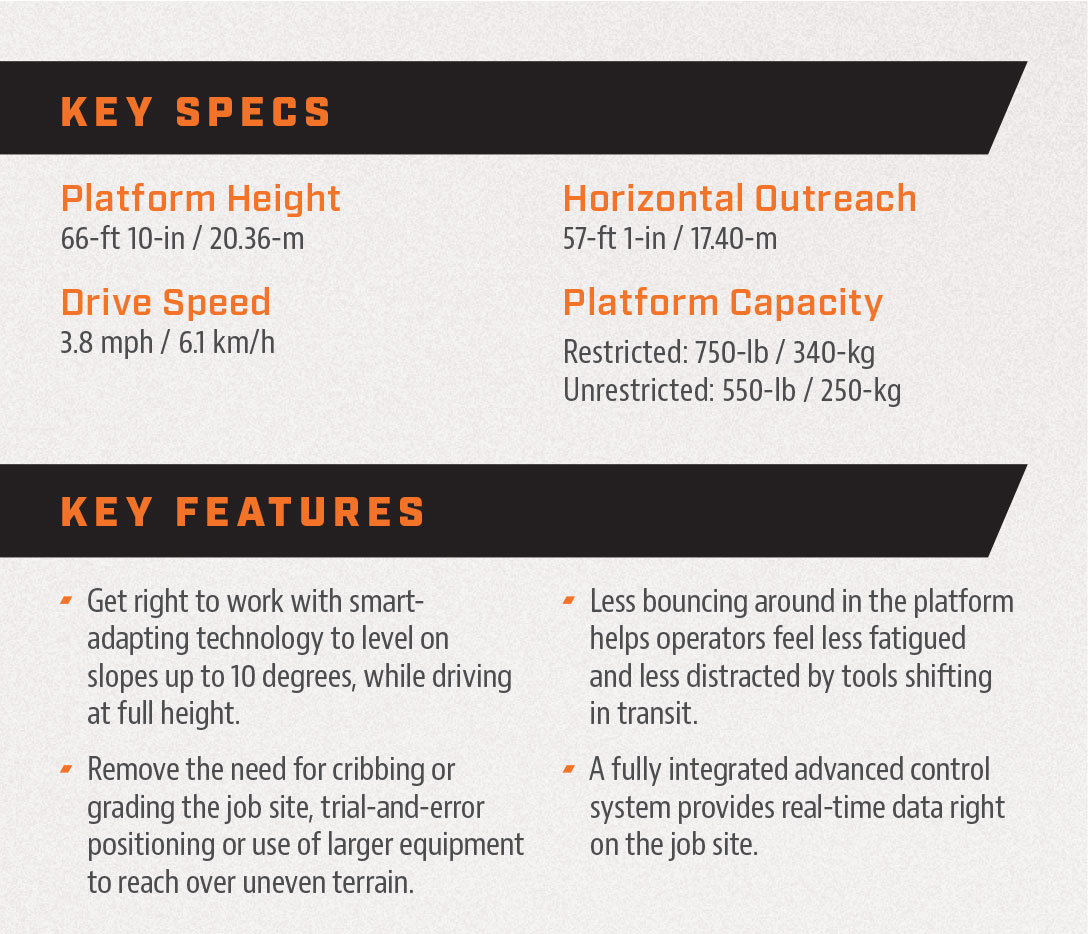

Platform Height
66-ft 10-in / 20.36-m
Horizontal Outreach
57-ft 1-in / 17.40-m
Swing
360 Degrees Continuous
Tailswing
4-ft / 1.22-m
Platform Capacity (Restricted)
750-lb / 340-kg
Platform Capacity (Unrestricted)
550-lb / 250-kg
Platform Rotator
180 Degrees Hydraulic
Jib Length
6-ft / 1.83-m
Jib Range of Articulation
132 Degrees (+71, -61)
Weight*
25,341-lb / 11,494-kg
Max. Ground Bearing Pressure
85 psi / 5.87 kg/cm2
Drive Speed
4WD 3.8 mph / 6.1 km/h
Gradeability
4WD 45%
Leveling Capacity (Fore/Aft)
10 Degrees
Leveling Capacity (Side to side)
10 Degrees
Turning Radius (Inside/Outside)
Inside: 8-ft 4.4-in / 2.55-m
Outside: 18-ft 7.6-in / 5.68-m
Engine
Diesel Engine – Deutz T4F 67 hp / 50 kW
Fuel Tank Capacity 31 gal / 117 L
Tires
Standard Foam Filled, 14(IN355)x17.5(55D625)
Optional Foam Filled Non-Marking, 14(IN355)X17.5(55D625)
Hydraulic System
Capacity 34 gal / 129 L
Auxiliary Power 12V DC
STANDARD FEATURES
10 Degree slope leveling
capability
12V-DC Auxiliary Power
110V-AC Receptacle in the
Platform
180 Degree Hydraulic Platform
Rotator
ClearSky Smart FleetTM
Hardware (CS550)**
Control ADE® System
Four-Wheel Hydrostatic Drive
Glow Plugs (Diesel Engines)
Horn
Hourmeter
Improved Multi-Function
Controls
Interactive Display at Ground
Controls
LED Motion / Amber Beacon
(CS550)**
Lifting / Tie Down Lugs
Motion Alarm
Oscillating Axle
Platform Console Machine
Status Light Panel***
Proportional Controls
SkyGuard SkyLineTM
Swing-Out Engine Tray
*Certain Options or Country Standards Increase Weight.
**Standard Beacon and ClearSky Smart Fleet Hardware Availability Varies by Model Throughout 2023.
***Provides Indicator Lights at Platform Control Console for System Distress, Low Fuel, Degree Tilt Light and Foot Switch Status.
1. Includes arctic hydraulic hoses (drive and steer only) and main boom cable, arctic hydraulic oil, extreme cold engine oil, fuel conditioner, engine block heater, battery blanket, glow plugs, hydraulic tank heater, and oversized footswitch.
2. Includes battery blanket, hydraulic tank heater, block heater.
Note: Some options may increase lead time, and some option combinations may not be available. Additional accessories and options available via JLG Aftermarket.
Due to continuous improvement, we reserve the right to make specification and/or equipment changes without prior notification.
