ACCESSORIES & OPTIONS
1/2-in Air Line to Platform
AC Generator, 2500W or
4000W
Accessory Packages
SkyPower® Package
SkyWelder® Package
SkyGlazier® Package
Arctic Package¹
Bolt On Fall Arrest System
Cold Weather Package²
Hostile Environment
Package³
Light Package
Platform Mesh to Mid or
Top Rail
Aluminum or Plastic
Platforms
Drop Bar, 30 x 36-in,
30 x 60-in, 36 x 72-in,
36 x 96-in
Fall Arrest, Rear Entry,
36 x 72-in, 36 x 96-in
Inward Self-Closing
Swing Gate, 30 x 60-in,
36 x 72-in, 36 x 96-in
Tri-Entry, Drop Bar or
Swing Gate, 36 x 72-in,
36 x 96-in
SkySense® Enhanced
Detection System
Soft Touch System
Storage Tray

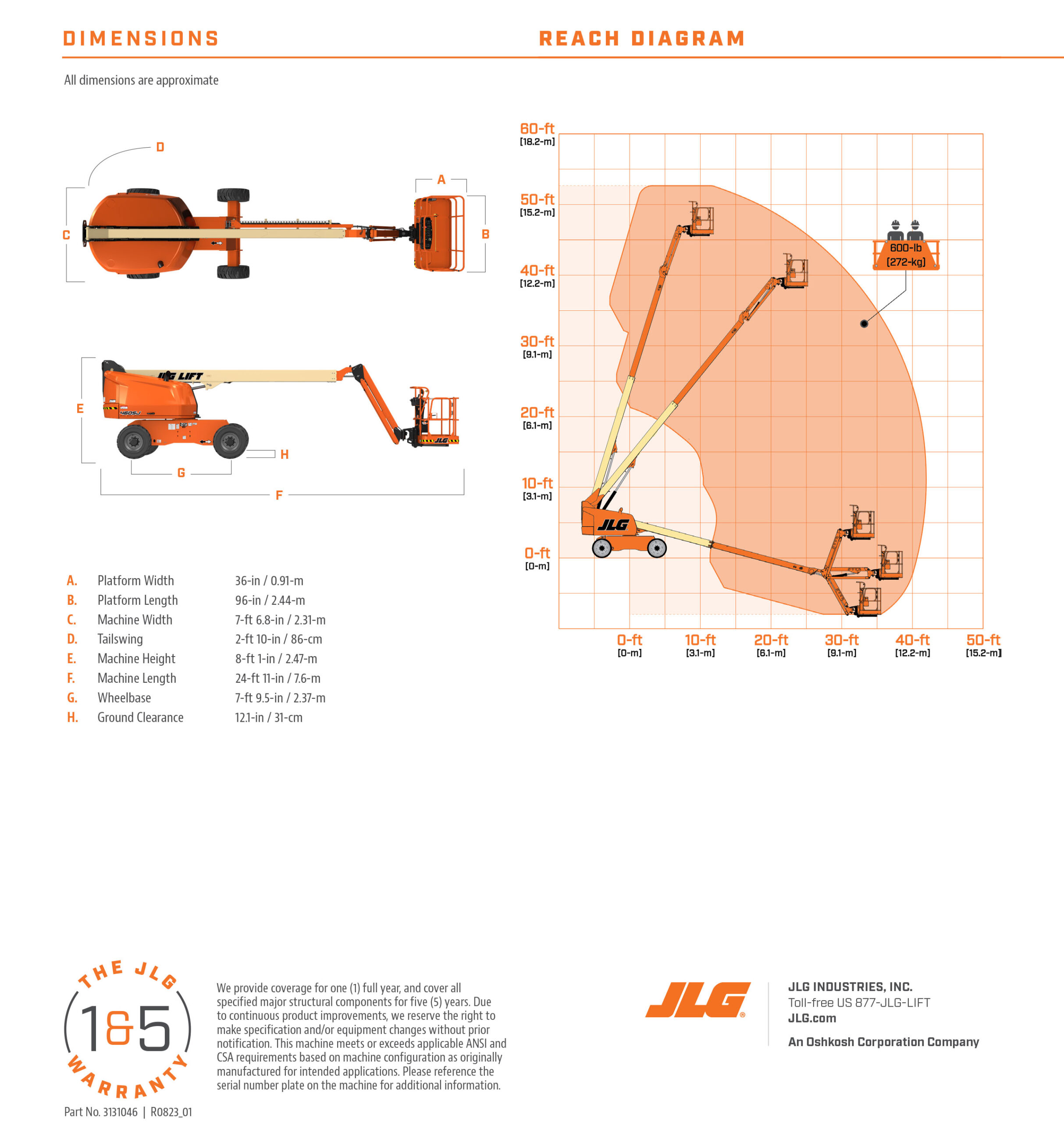

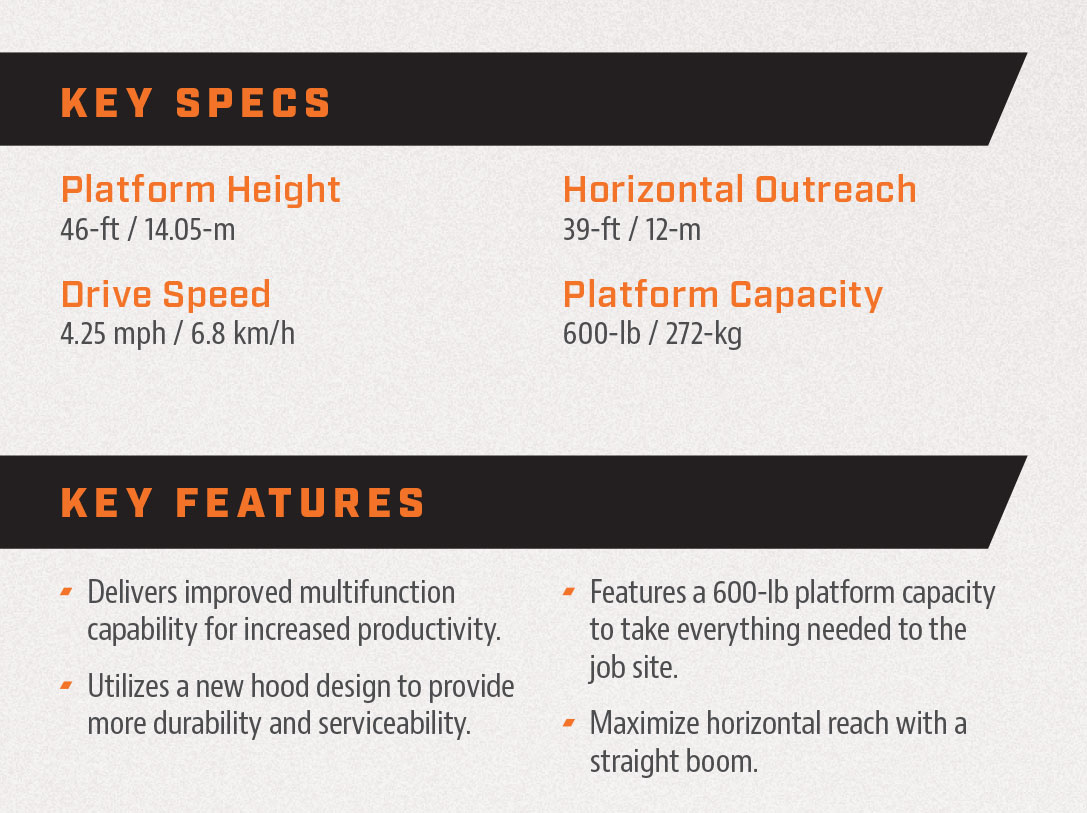

STANDARD SPECIFICATIONS
Platform Height
46-ft / 14.05-m
Horizontal Outreach
39-ft / 12-m
Swing
360 Degrees Continuous
Platform Capacity (Unrestricted)
600-lb / 272-kg
Platform Rotator
180 Degrees Hydraulic
Jib
6-ft / 1.83-m
Range of Articulation
130 Degrees (+70, -60)
Weight*
16,600-lb / 7,530-kg
Max. Ground Bearing Pressure
60 psi / 4.76 kg/cm²
Drive Speed
4.25 mph / 6.8 km/h
Gradeability
45%
Tilt Cut Out
5 Degrees
Turning Radius (Inside/Outside)
6-ft 6.9-in (2.0-m) / 15-ft 10.5-in (4.8-m)
Engine
Dual Fuel – Kubota WG2503 61 hp / 45.5 kW
Diesel Fuel – Deutz D2.9L4 Tier 4 Final 49 hp / 36.4 kW
Fuel Tank Capacity 22 gal / 83.3 L
Tires
Standard Foam Filled, 12x16.5
Optional
Foam Filled Non-Marking, 12x16.5
Foam Filled, 14x17.5
Foam Filled, Turf & Sand, 33/16LLx16.1
Hydraulic System
Hydraulic Reservoir 36 gal / 136.27 L
Auxiliary Power 12V DC
STANDARD FEATURES
36 x 96-in (.91 x 2.44-m)
Platform
5 Degree Tilt Alarm/Indicator
Light
12V-DC Auxiliary Power
110V-AC Receptacle in the
Platform
180 Degree Hydraulic Platform
Rotator
ClearSky Smart Fleet™ Hardware
(CS550)**
Control ADE® System
Four-Wheel Hydrostatic Drive
Glow Plugs (Diesel Engines)
Horn
Hourmeter
Improved Multi-Function
Controls
Interactive Display at Ground
Controls
Lifting/Tie Down Lugs
LED Motion / Amber Beacon
(CS550)**
Motion Alarm
Oscillating Axle
Platform Console Machine
Status Light Panel***
Proportional Controls
Reduced Time to Full Height
SkyGuard SkyLine™
Swing-Out Engine Tray
*Certain Options or Country Standards Increase Weight.
**Standard Beacon and ClearSky Smart Fleet Hardware Availability Varies by Model Throughout 2023.
***Provides Indicator Lights at Platform Control Console for System Distress, Low Fuel, Degree Tilt Light and Foot Switch Status.
1. Includes arctic hydraulic hoses (drive and steer only) and main boom cable, arctic hydraulic oil, extreme cold engine oil, fuelconditioner, engine block heater, battery blanket, glow plugs, hydraulic tank heater, and oversized footswitch.
2. Includes battery blanket, hydraulic tank heater, block heater.
3. Includes console cover, boom wipers and cylinder bellows.
Note: Some options may increase lead time, and some option combinations may not be available.
Additional accessories and options available via JLG Aftermarket.
